Radiology Diagnostics of a New Coronavirus Infection in Pregnant Women. Experience of O.M. Filatov Municipal Clinical Hospital No. 15, Moscow

Cover Page


Cite item

Full Text

Abstract

Background. The pandemic of coronavirus pneumonia (COVID-19) is spreading globally at an accelerated rate and is a major health problem. The purpose of this study was to assess the possibility of using a combination of radiation diagnostic methods in lung lesions in pregnant women, with confirmed coronavirus infection and suspected COVID-19 pneumonia, hospitalized in O.M. Filatov Municipal Clinical Hospital No. 15, Moscow.

Methods. Retrospectively analyzed changes in lung parenchyma and pleura detected by multispiral computed tomography of chest organs and pulmonary ultrasound in 90 pregnant patients with clinical manifestations of viral pneumonia and confirmed coronavirus infection.

Results. Examined 90 patients with clinical manifestations of pneumonia and PCR-confirmed COVID-19. Among the clinical manifestations, coughing, fever, shortness of breath prevailed. Most changes detected by lung tomography (performed in 92% of patients), had a polysegmental and bilateral character, were more often localized in the peripheral departments, in 74 (89%) patients were involved in a pathological process of more than two lobes, in 77 (93%) of the patients were determined the centers of pulmonary tissue compaction by the type of “ground glass”, and the combination of the above manifestations with the presence of foci of consolidation and reticular changes was noted in 23 (28%) cases. Among the complications more common: thickening of the pleura, hydrothorax, less often pneumothorax. In 43 (48%) patients, MSCT was supplemented by ultrasound examination of the lungs and pleura, and in 21 (23%) patients, ultrasound was used in isolation as a dynamic control tool to reduce dose load and comply with the ALARA principle, while in 7 (8%) patients, ultrasound was used as the only diagnostic tool due to refusal to perform MSCT.

Conclusion. Radiosemiotics of lung lesions in pregnant women with COVID-19, detected in MSCT of thoracic organs, does not differ from that in non-pregnant patients. The appearance of specific zones of pulmonary tissue compaction in the form of a “gound glass”, as a manifestation of a unilateral or bilateral, mono- or polyphocal lung lesion, is highly likely to indicate a manifestation of COVID-19. Pulmonary ultrasound also allows detecting characteristic changes in lung parenchyma and pleura in pregnant women, correlating with MSCT data, primarily in patients with medium-severe forms of pneumonia. Use of ultrasonography corresponds to the principle of ALARA in medicine, remaining a choice method with the women refusing the visualization interfaced to beam loading that can be used in the period of COVID-19 pandemic.

Full Text



×

About the authors

Dmitriy A. Doroshenko

O.M. Filatov Municipal Clinical Hospital No. 15; Pirogov Russian National Research Medical University

Email: drdoroshenko@mail.ru
ORCID iD: 0000-0001-8045-1423
SPIN-code: 9451-7029

MD, PhD

Россия, Moscow; Moscow

Yuriy I. Rumyantsev

O.M. Filatov Municipal Clinical Hospital No. 15

Author for correspondence.
Email: rumyantsev5@mail.ru
ORCID iD: 0000-0002-6210-3908
SPIN-code: 1745-3929

Radiologist

Россия, 23 Veshnyakovskaya str., 111539, Moscow

Oксана A. Shapsigova

O.M. Filatov Municipal Clinical Hospital No. 15

Email: ksy-sha72@mail.ru
ORCID iD: 0000-0002-5666-1292

MD, PhD

Россия, Moscow

Borislav V. Silaev

O.M. Filatov Municipal Clinical Hospital No. 15

Email: drsilaev@yandex.ru
ORCID iD: 0000-0002-9698-3915
SPIN-code: 3970-9048

MD, PhD

Россия, Moscow

Olga V. Konisheva

O.M. Filatov Municipal Clinical Hospital No. 15

Email: okonysheva@mail.ru
ORCID iD: 0000-0002-8064-2761
SPIN-code: 2155-1395

MD, PhD

Россия, Moscow

Sergey A. Gumenyuk

Scientific and Practical Center for Emergency Medical Care of the Moscow Department of Health

Email: gkb15@zdrav.mos.ru
ORCID iD: 0000-0002-4172-8263
SPIN-code: 2275-4337

MD, PhD

Россия, Moscow

Valeriy I. Vechorko

O.M. Filatov Municipal Clinical Hospital No. 15; Pirogov Russian National Research Medical University

Email: emma.makoeva123@mail.ru
ORCID iD: 0000-0003-3568-5065
SPIN-code: 3192-2421

MD, PhD

Россия, Moscow; Moscow

References

  1. Профилактика, диагностика и лечение новой коронавирусной инфекции (COVID-19). Временные методические рекомендации. Версия 6 от 28.04.2020. [Profilaktika, diagnostika i lechenie novoj koronavirusnoj infekcii (COVID-19). Vremennye metodicheskie rekomendacii. Versiya 6 ot 28.04.2020. (In Russ.)] Available from: https://static.consultant.ru/obj/file/doc/minzdrav_280420.pdf
  2. Митьков В.В., Сафонов Д.В., Митькова М.Д., и др. Консенсусное заявление РАСУДМ об ультразвуковом исследовании легких в условиях COVID-19 (версия 2) // Ультразвуковая и функциональная диагностика. — 2020. — № 1. — С. 24–45. [Mit’kov VV, Safonov DV, Mit’kova MD, et al. RASUDM Consensus Statement: lung ultrasound in the context of COVID-19 (version 2). Ultrasound and Functional Diagnostics. 2020;(1):24–45. (In Russ.)] doi: https://doi.org/10.24835/1607-0771-2020-1-46-77
  3. Лучевая диагностика коронавирусной болезни (COVID-19): организация, методология, интерпретация результатов: препринт № ЦДТ-2020-II. Версия 2 от 17.04.2020 / сост. С.П. Морозов, Д.Н. Проценко, С.В. Сметанина и др. // Серия «Лучшие практики лучевой и инструментальной диагностики». — Вып. 65. — М.: НПКЦ ДиТ ДЗМ, 2020. — 78 с. [Luchevaya diagnostika koronavirusnoĭ bolezni (COVID-19): organizaciya, metodologiya, interpretaciya rezul’tatov: preprint № CDT-2020-II. Versiya 2 ot 17.04.2020 / sost. S.P. Morozov, D.N. Procenko, S.V. Smetanina i dr. Seriya «Luchshie praktiki luchevoi i instrumental’noi diagnostiki». Vyp. 65. Moscow: GBUZ “NPKC DiT DZM”; 2020. 78 p. (In Russ.)]
  4. Piscaglia F, Stefanini F, Cantisani V. Benefits, Open questions and Challenges of the Use of Ultrasound in the COVID-19 Pandemic Era. The Views of a Panel of Worldwide International Experts. Ultraschall Med. 2020;41(3):228–236. doi: https://doi.org/10.1055/a-1149-9872
  5. Синицын В.Е., Тюрин И.Е., Митьков В.В. Временные согласительные методические рекомендации Российского общества рентгенологов и радиологов (РОРР) и Российской ассоциации специалистов ультразвуковой диагностики в медицине (РАСУДМ) «Методы лучевой диагностики пневмонии при новой коронавирусной инфекции COVID-19» (версия 2) // Вестник рентгенологии и радиологии. – 2020. – Т. 101. – № 2. – С. 72–89. [Sinitsyn VE, Tyurin IE, Mitkov VV. Consensus Guidelines of Russian Society of Radiology (RSR) and Russian Association of Specialists in Ultrasound Diagnostics in Medicine (RASUDM) “Role of Imaging (X-ray, CT and US) in Diagnosis of COVID-19 Pneumonia” (version 2). Journal of radiology and nuclear medicine. 2020;101(2):72–89. (In Russ.)]. doi: https://doi.org/10.20862/0042-4676-2020-101-2-72-89
  6. ACOG. Guidelines for diagnostic imaging during pregnancy and lactation. ACOG Committee opinion number 723, October 2017. Available from: https://www.acog.org/Clinical-Guidance-and-Publications/Committee-Opinions/Committee-on-Obstetric-Practice/Guidelinesfor-Diagnostic-Imaging-During-Pregnancy-and-Lactation?IsMobileSetјfalse (accessed: 20.02.2020).
  7. Abramowicz J.S., Basseal J. Заявление о позиции WFUMB: как безопасно проводить ультразвуковое исследование и обеззараживать ультразвуковое оборудование в условиях COVID-19 (перевод на русский язык) // Ультразвуковая и функциональная диагностика. — 2020. — № 1. — С. 12–23. [Abramowicz JS, Basseal J. WFUMB Position Statement: How to perform a safe ultrasound examination and clean equipment in the context of COVID-19 (translation into Russian). Ultrasound and Functional Diagnostics. 2020;1:12–23. (In Russ.)] doi: https://doi.org/10.24835/1607-0771-2020-1-12-23
  8. Lu W, Zhang S, Chen B, et al. A Clinical Study of Noninvasive Assessment of Lung Lesions in Patients with Coronavirus Disease-19 (COVID-19) by Bedside Ultrasound. Ultraschall Med. 2020;41(3):300–307. doi: https://doi.org/10.1055/a-1154-8795
  9. Liu HF, Zhang DY, Yang Y, Long B, Yin L, Zhao M, Peng Y. Analysis of early chest high resolution CT images of novel coronavirus pneumonia. Chin J Radiol. 2020;54(00):E007–E007.

Supplementary files

Supplementary Files
Action
1. JATS XML

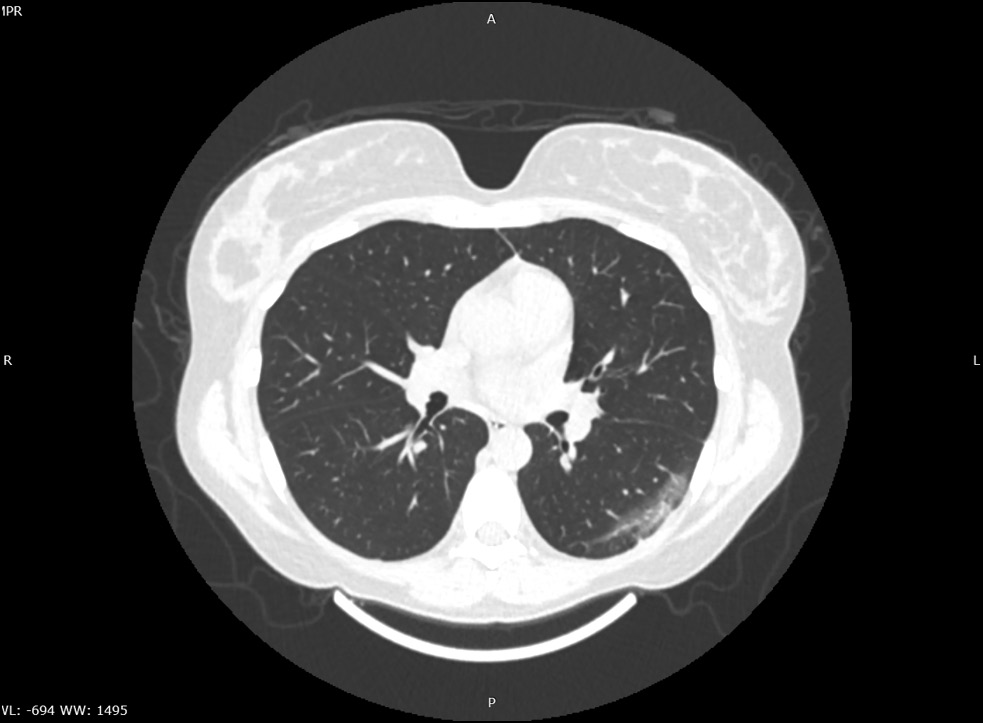

2. Fig. 1. MSCT. Area of "frosted glass" in the left lung

Download (80KB)
3. Fig. 2. Ultrasound. Many B-lines

Download (167KB)

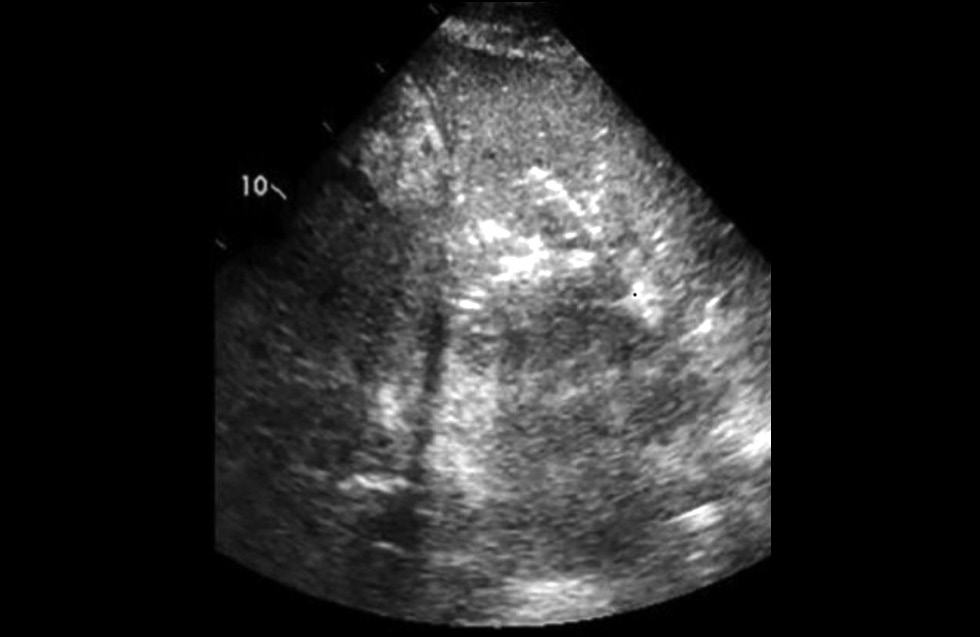

4. Fig. 3. Ultrasound. Fragment of the "white lung" - consolidation

Download (51KB)
5. Figure: 4, a. MSCT. Bilateral lesion severity CT-2

Download (88KB)
6. Fig. 4, b. MSCT. Increase in the lesion volume, transfer of the patient to mechanical ventilation

Download (93KB)
7. Fig. 4, c. Patient B. 38 years old - negative dynamics through 7 days

Download (83KB)

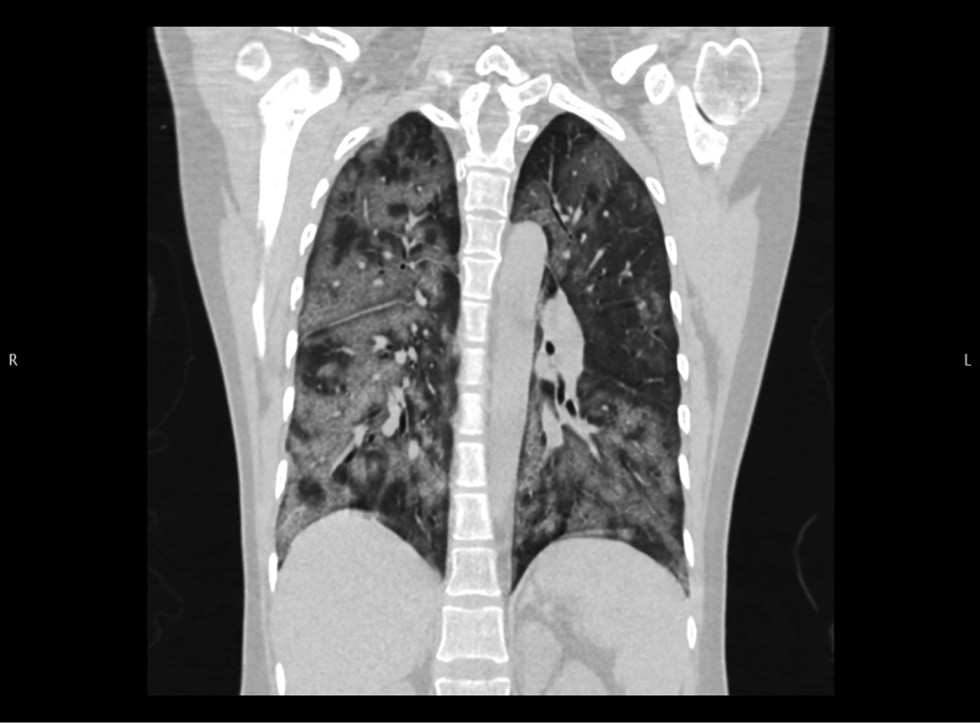

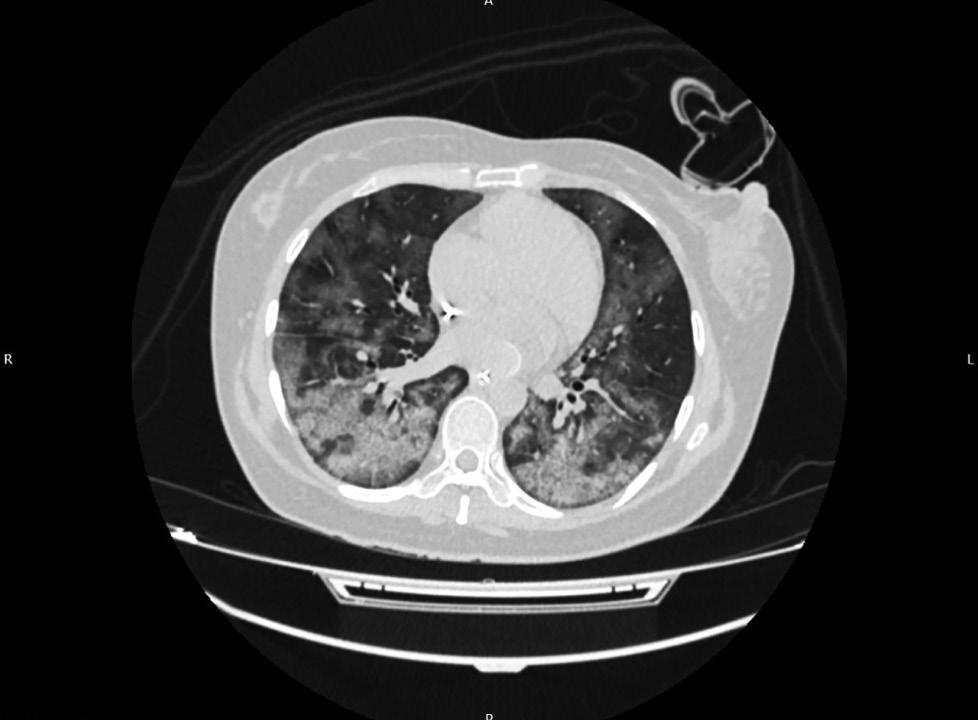

8. Figure: 4 d, MSCT. Bilateral subtotal changes in posterior parts of both lungs

Download (92KB)
9. Figure: 4, e. MSCT. Development of right-sided pneumothorax, emphysema of soft tissues

Download (76KB)

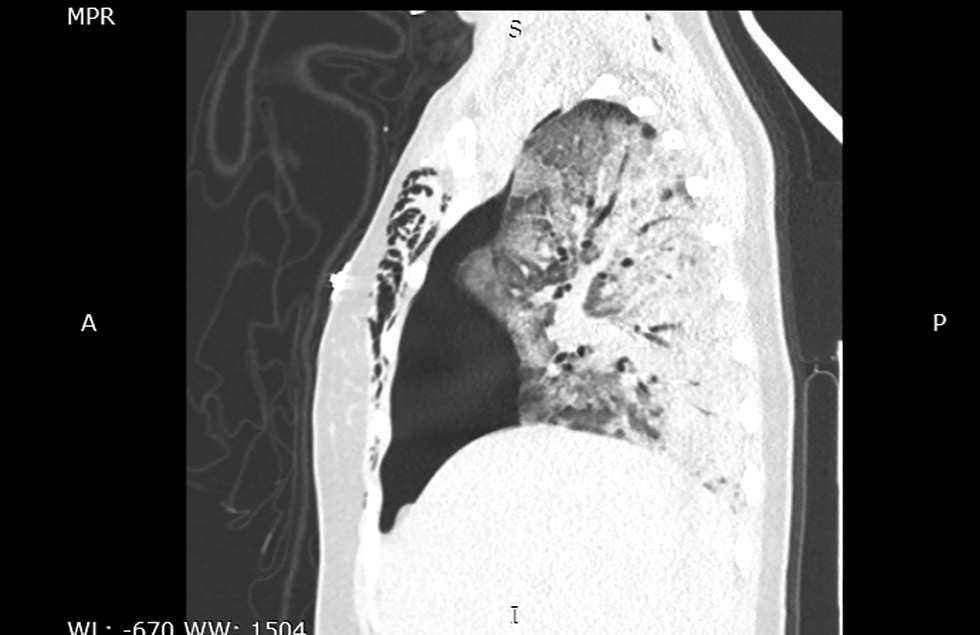

10. Fig. 4, f. MSCT. Pneumothorax on the right in the sagittal plane

Download (88KB)
11. Fig. 5, a. Ultrasound. Cortical consolidation

Download (73KB)
12. Fig. 5 b. Ultrasound. Thickening of the pleura with subpleural consolidation

Download (94KB)
13. Fig. 5, c. Predominantly right-sided lesion, confirmed by MSCT

Download (79KB)
14. Fig. 5, d. MSCT. Left lung changes

Download (76KB)

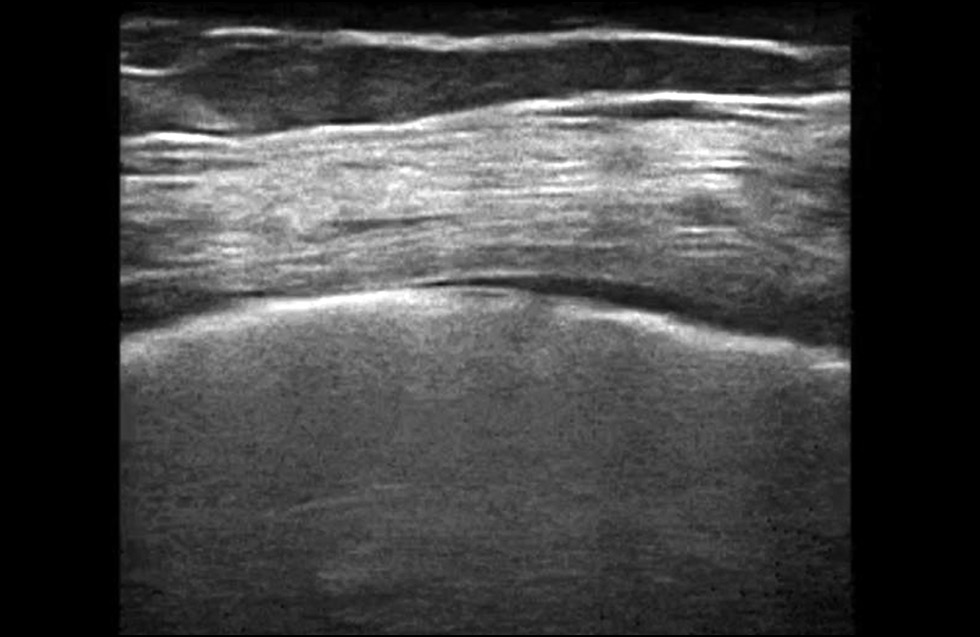

15. Fig. 6, a. Ultrasound. "Triangular" deformity of the pleural line

Download (69KB)

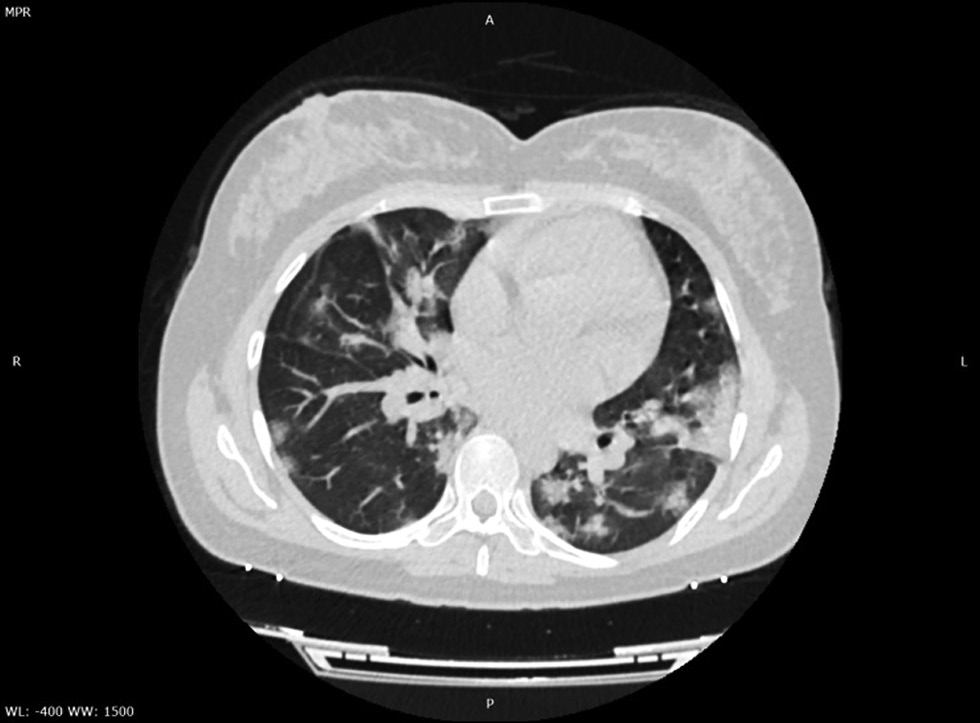

16. Fig. 6, b. MSCT. Axial plane. Bilateral changes, mainly on the left

Download (90KB)

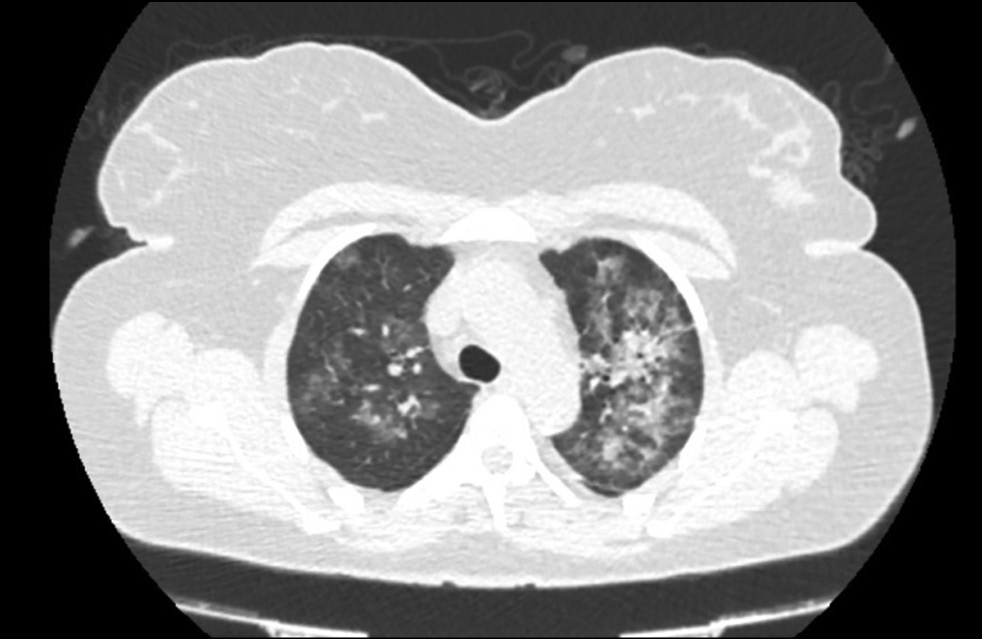

17. Fig. 6, c. MSCT. Severity of CT-2

Download (97KB)
